Ableton CE1 CE2 Chorus v.1.1 Max for Live Device (.amxd file)

Non Linear Dynamics and Phase Topology in Spatial Modulation

In the modern digital audio workstation, achieving a perfectly clean audio signal is effortless. Yet, it is the deliberate embrace of physical imperfection, phase interference, and circuit misbehavior that injects harmonic depth, three dimensional weight, and raw emotional energy into a mix. In the late twentieth century, solid state chorus ensembles transcended the definition of a mere effects pedal. They became an foundational sonic architecture that shaped the identity of both guitarists and synthesizer players. The secret of that elusive, legendary movement lies not in static digital delay lines, but in the non linear component interactions and the unique time domain physics embedded within analog circuitry.

Preamp Saturation and Harmonic Binding

The core of an exceptional chorus sound is established long before the audio signal enters the delay network. The input stage of vintage hardware features a distinct configuration of JFET operational amplifiers and BBD input gate transistors. When an audio signal drives this analog topology, it triggers a two stage non linear saturation. This process introduces an asymmetric clipping profile rich in odd and even harmonics, wrapping the original transient in a dense, tangible warmth. Because this saturation occurs prior to the signal splitting into dry and wet paths, the generated harmonics are structurally fused across the entire spatial texture. This interaction achieves a level of organic cohesion that standard digital modulation cannot replicate, delivering a thick, pre saturated authority that glues the sound directly into the mix.

Hyperbolic Delay Mathematics and Filter Topology Boundaries

Analog chorus modulation captivates the human ear because its time displacement operates on a entirely different mathematical framework than linear digital calculation. Within this system, a single clock generator drives the timing currents, translating a linear low frequency oscillator wave into a strict hyperbolic delay curve. This non linear stretching and compressing of the time domain is the precise mechanism that transforms a sterile pitch shift into an organic, liquid movement.

The radical sonic differentiation between eras is dictated by the precise topology of their anti aliasing networks. One classic design employs a simple first order RC filter structure, intentionally leaving the upper frequencies intact to achieve a crisp, distinct, and articulate texture. Conversely, another legendary configuration stacks a first order RC network with a second order Sallen Key active filter to enforce a steep 18dB per octave cut at 3200Hz. This aggressive filtering sweeps away harsh digital transients, yielding that iconic, dark, and velvety warmth that perfectly envelops polyphonic synthesizer pads and expansive guitar arrangements. Combined with subtle signal degradation from charge transfer efficiency across the bucket brigade stages, the architecture constructs an immersive depth with an unmistakable presence.

Transient Breathing Driven by Compander Overdrive

To combat the inherent noise floors of early bucket brigade networks, analog engineers implemented dynamic companding integrated circuits. Compressing the dynamic range prior to the delay line and expanding it at the output stage creates a highly volatile, program dependent interaction that defies static emulation. The envelope follower tracks the signal with precise attack and release constants of approximately 1 millisecond and 60 milliseconds. This timing differential relative to the fixed BBD delay creates a beautiful transient phenomenon known as bloom. The initial strike of a guitar string or the sharp onset of a synthesizer envelope triggers a physical breathing effect, causing the transient to explode across the stereo field with incredible responsiveness and life.

Complete Restoration within the Discrete Time Domain

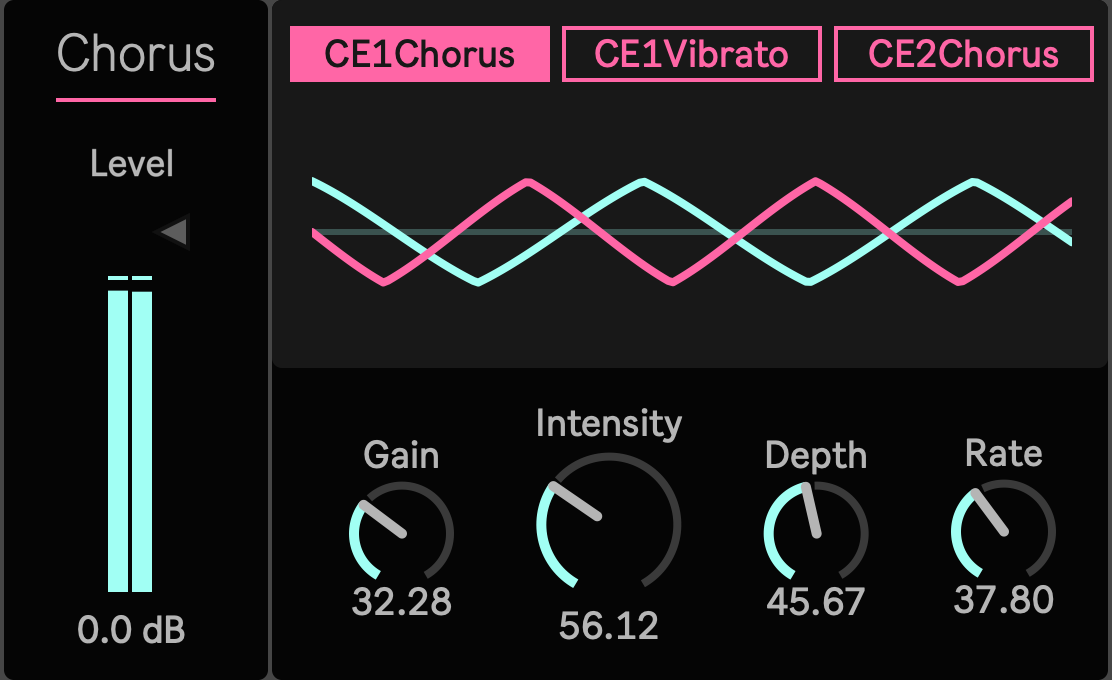

Bringing these complex, volatile circuit behaviors into the contemporary digital environment requires an uncompromising mathematical translation. The CE1CE2 Chorus device for Ableton Max for Live represents a complete, bit accurate reconstruction of these historical analog paths. Built within the Max MSP gen environment using a branchless GenExpr framework, the device processes all signal routing and multi stage filtering entirely at the audio rate without relying on CPU draining conditional loops.

The architecture provides comprehensive modeling of both the expansive stereo fields of early designs and the focused, sharp center imaging of later single phase topologies. Every filter curve, from the vintage input low cut networks to the dynamic reconstruction filters, is mapped using bilinear transformations to ensure exact frequency matching and absolute numerical stability. Reflecting the authentic hardware layout, the dry signal bypasses the emphasis processing completely, routing directly to the output mixer to preserve the pure punch of your original audio.

Continuous Refinement and Automatic Lifecycle Access

This device is not a superficial digital approximation. It is a living, breathing model born from deep circuit analysis and acoustic engineering. Creators who acquire this spatial utility through Sellfy receive continuous support and ongoing algorithmic optimizations. By logging into their established Sellfy account, users can retrieve the latest build automatically and without any additional cost, ensuring their studio environment remains permanently equipped with the most refined analog emulation available.

v.1.1 ... Improved overall circuit modeling fidelity. (2026/5/26)
