Ableton Ring Modulator v.2.0 Max for Live Device (.amxd file)

Ring modulation is one of the rare audio processes that does not simply decorate a sound. It changes the mathematical relationship inside it.

A guitar note, a synth line, a vocal phrase, or a drum hit already contains its own internal spectrum. When a ring modulator introduces a second frequency into that signal, the original sound is split into new sum and difference tones. The result is not chorus, distortion, or filtering in the ordinary sense. It is a controlled collision between frequencies.

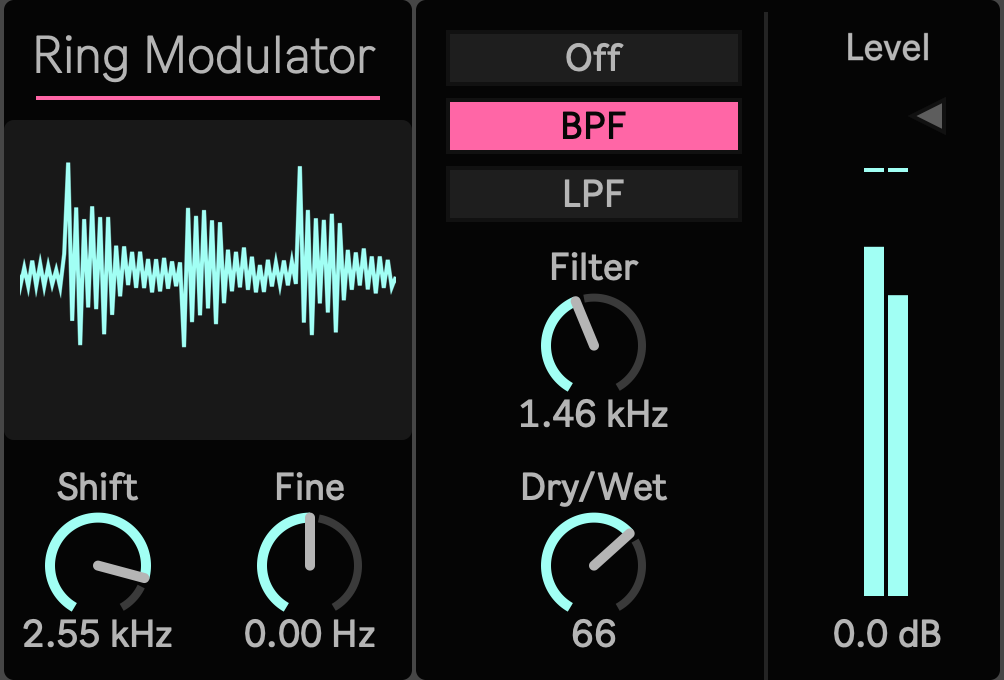

Ableton Ring Modulator v.2.0 brings this classic principle into Ableton Live as a Max for Live device, designed for metallic textures, robotic tones, harmonic instability, and physically transformed sound.

It can be subtle enough to add a faint electric shimmer to a clean phrase, or extreme enough to turn a simple signal into an unfamiliar instrument.

A Circuit Idea Inside a Digital Device

The core sound is based on the behavior of an analog balanced modulator structure. Instead of using a perfectly clean digital multiplier, the device introduces saturation characteristics inspired by transistor based modulation circuits.

This matters because real ring modulation is not only about multiplication. It is also about how the signal bends before it multiplies.

The input signal receives a moderate nonlinear curve, adding a small amount of odd harmonic density. The carrier side is driven harder, approaching a square like switching behavior. This asymmetry gives the processed sound a sharper metallic edge and a more complex harmonic field than a simple clean multiplier would produce.

The result is a ring modulator that feels physical, unstable, and alive, while remaining fully controllable inside Ableton Live.

SHIFT as a Harmonic Compass

The SHIFT control defines the carrier frequency. At low settings, the effect behaves like movement. The sound trembles, bends, and produces slow beating patterns near the original pitch.

As SHIFT rises, the device enters the classic ring modulation zone. Sidebands appear around the source material. Notes begin to acquire bell like edges, synthetic overtones, robotic formants, and metallic shadows.

This makes the device useful across many forms of sound creation. Use it on clean guitar to create glassy harmonic edges. Use it on synths to introduce metallic movement without conventional modulation. Use it on vocals for robotic transformation. Use it on percussion to turn short transients into strange resonant objects.

The device is not limited to one genre. It belongs wherever the sound needs to feel electrical, mechanical, unstable, or physically transformed.

Fine Tuning the Interference

The FINE control adjusts the carrier in cents. This is where ring modulation becomes musical rather than merely strange.

A small change creates beating. A larger change shifts the sidebands into a new harmonic relationship. When the carrier frequency aligns with the key or root of the material, the result can become unexpectedly clear, almost bell like. When it is slightly detuned, the sound breathes, wavers, and destabilizes.

This is especially useful for creators who want motion without relying on standard LFO modulation. The movement comes from acoustic interference itself.

Filtering the New Spectrum

Ring modulation generates many new frequency components. Without shaping, this can become too wide, too bright, or too chaotic.

Ableton Ring Modulator v.2.0 includes a filter section after the modulation stage, with low pass and band pass modes.

Low pass mode softens the upper sidebands and keeps the effect usable in musical phrases. It is effective when you want metallic color without letting the high end dominate the mix.

Band pass mode isolates a narrower region of the generated spectrum. This turns the filter into a sideband selector. Instead of hearing the entire collision, you can focus on one spectral window: a bell tone, a nasal robotic band, a resonant metallic stripe, or a strange midrange accent.

The filter section makes the device practical, not only experimental.

From Subtle Color to Total Transformation

With MIX set low, the original signal remains intact while the ring modulation adds a faint second surface. This works well for clean guitars, keys, pads, vocals, and background textures.

At medium settings, the dry signal and processed signal compete. This is where the device becomes most expressive: recognizable, but altered.

At full wet settings, the original instrument is no longer the main identity. The output becomes a new signal built from sum tones, difference tones, saturation, and filtered sidebands.

LEVEL compensates for the natural energy loss of ring modulation, allowing the processed sound to sit properly in the track.

A Tool for Unfamiliar Matter

Most effects make sound larger, smoother, wider, or louder. Ring modulation does something less conventional. It makes the sound mathematically unfamiliar.

That is why it remains useful in modern production and live performance. Many sounds begin as clean digital sources, familiar guitar tones, recorded voices, or simple percussion. Ring modulation gives those sources a physical problem to solve. Frequencies collide. Harmonics split. Motion appears without needing a conventional modulation preset.

For guitarists, electronic musicians, experimental producers, live performers, and sound designers, Ableton Ring Modulator v.2.0 offers a compact way to introduce unstable tone color, metallic articulation, and controlled spectral mutation.

It is not simply a device for making robot sounds.

It is a device for discovering the hidden intervals inside a sound.

Availability and Updates

Ableton Ring Modulator v.2.0 is available as an Ableton Max for Live device through the Sellfy platform.

Existing customers can access the latest version automatically by logging into Sellfy with the account used for purchase. All version updates are available at no additional cost for existing purchasers.

---
