Ableton D7 Tap Delay ver.3.1 Max for Live Device (.amxd file)

The Architecture of 1990s Digital Spatial Processing

The 1990s marked a pivotal transition in professional audio engineering. Studios began to move away from the unpredictable mechanical nature of analog tape echo and embraced the mathematical precision of digital signal processing. During this period, the SONY DPS series established itself as a cornerstone of high end rackmount effects. Producers and engineers integrated these units into their mixing consoles not merely for their clarity, but for their highly specific sonic footprint and complex internal routing capabilities.

The Physics of Early Digital Conversion

The distinct character of vintage digital hardware stems directly from its physical engineering and inherent limitations. The AD and DA conversion circuits of that era possessed unique behaviors that heavily influenced the final output. The interaction between early operational amplifiers, specific filtering networks, and the quantization methodologies of the 1990s imparted a tangible density to the audio signal. The sound was mathematically precise, yet it retained a profound physical weight that modern and clinically transparent converters often fail to replicate. Understanding this exact circuit behavior is crucial for accurately analyzing the authentic studio sound of that decade.

The Mechanics of Algorithm 5

Within the SONY DPS D7 unit, sound designers found a highly sophisticated environment for manipulating time and phase. The true structural power of this hardware resided in a mode known as Algorithm 5, categorized formally as Long Tap Delay. This was not a standard feedback loop. The algorithm provided a complex structural framework for generating rhythmic and cascading delay lines. By managing multiple delay taps with precise timing, panning, and level controls, creators could construct intricate acoustic spaces that defined the spatial texture of 90s electronic, ambient, and popular music.

Circuit Level Reconstruction: The D7 Tap Delay

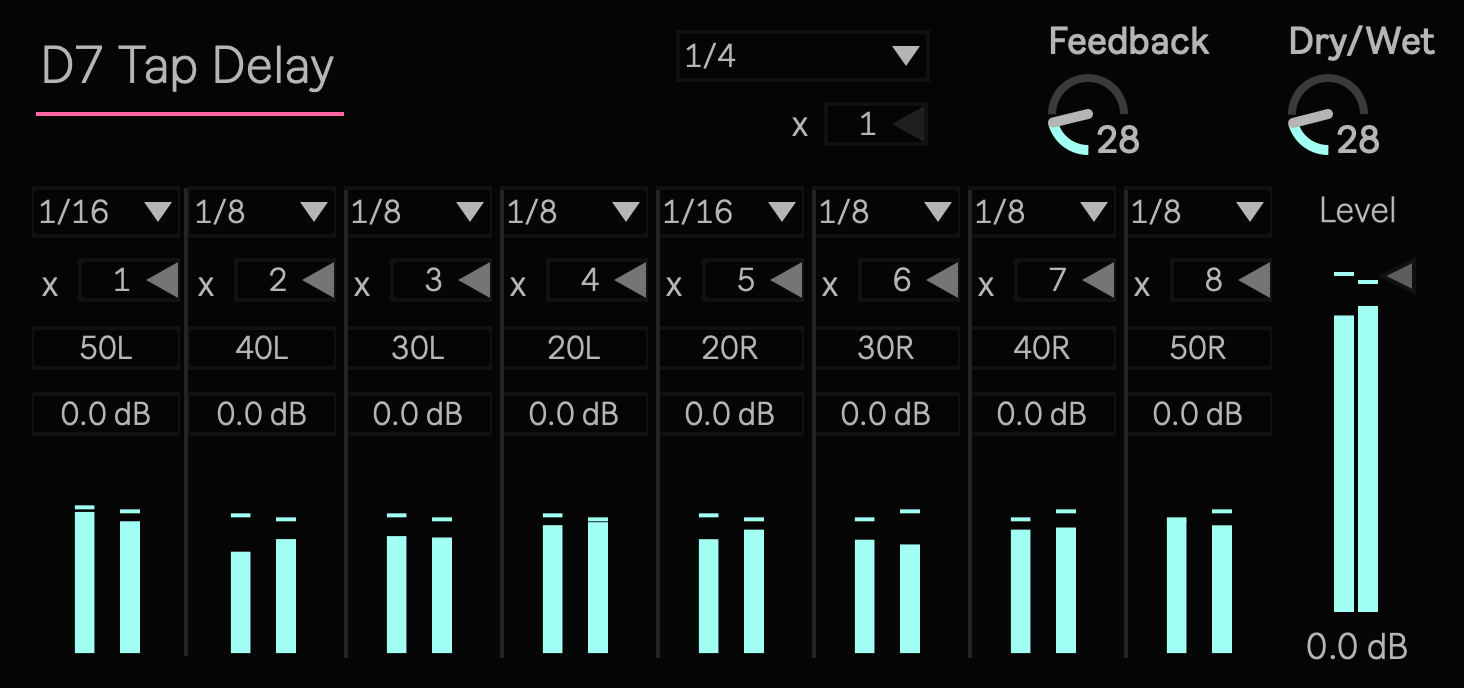

The D7 Tap Delay is an Ableton Max for Live device engineered to resurrect this precise studio architecture within a modern digital audio workstation. The development process focused on a rigorous and objective analysis of the original hardware blueprint. This device completely replicates the distinctive tone and functional logic of Algorithm 5 at the foundational algorithmic level. Furthermore, it incorporates strict circuit modeling of the original AD and DA conversion stages. This ensures the accurate reproduction of the subtle harmonic distortion, bandwidth limitation, and frequency response characteristic of the physical unit.

Structural Sound Design for the Modern Studio

For creators dedicated to scientific sound design and the authentic methodology of vintage studio routing, this tool provides a mathematically accurate representation of a classic processor. It functions as a direct pathway to the structural acoustic design techniques utilized by leading engineers of the 1990s, allowing for critical exploration of historical spatial processing within a contemporary workflow.

Purchasers of this device can automatically access and download the latest version updates at no additional cost by logging into their authorized Sellfy account.

v.3.1  ... Improved overall circuit modeling fidelity. (2026/5/27)
